Product Introduction
Our solid hard wooden steps (rungs/treads) are core components for marine pilot and embarkation ladders, manufactured strictly in accordance with latest ISO 799 and ISO 5489 standards. Made of premium knot-free hardwood (typically beech), these steps feature excellent load-bearing capacity, anti-slip performance and seawater corrosion resistance. They serve as reliable parts for ship rope ladders, widely used on various ocean-going vessels to ensure safe boarding and disembarkation for marine pilots and crew members
We supply standard size steps and customized specifications. These wooden treads are designed for long-term marine environment use, resistant to humidity, salt spray and abrasion.
Product Parameter (specification)
|
Item |
Technical Data |
|
Main Material |
Premium knot-free hardwood (Beech, Rubber Tree, etc.) |
|
Structure |
One-piece solid wood, no joints, no knots, free of leakage, crack, burrs or sharp edges |
|
Standard Dimension |

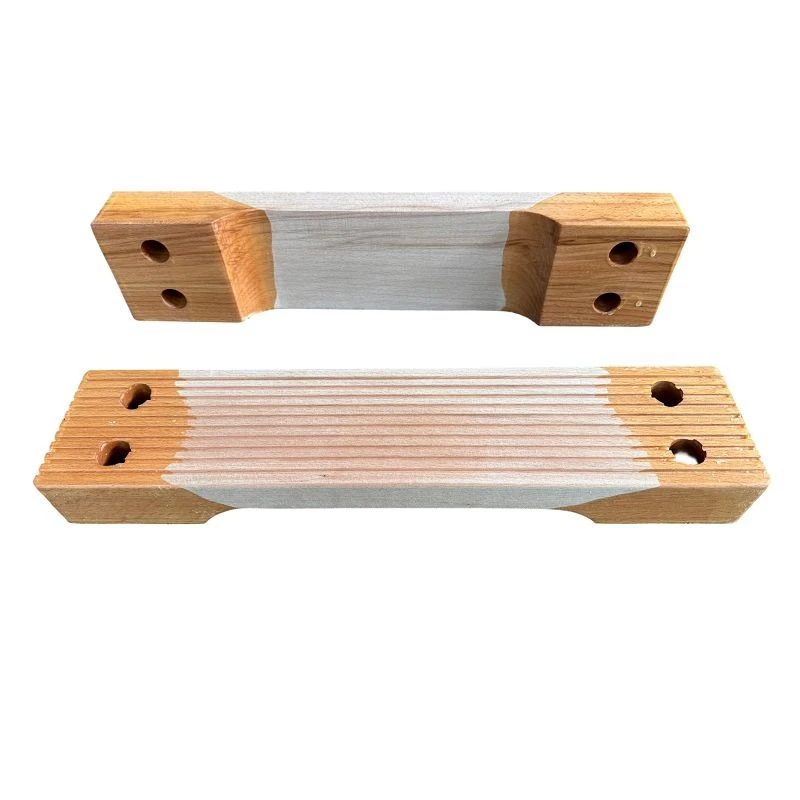

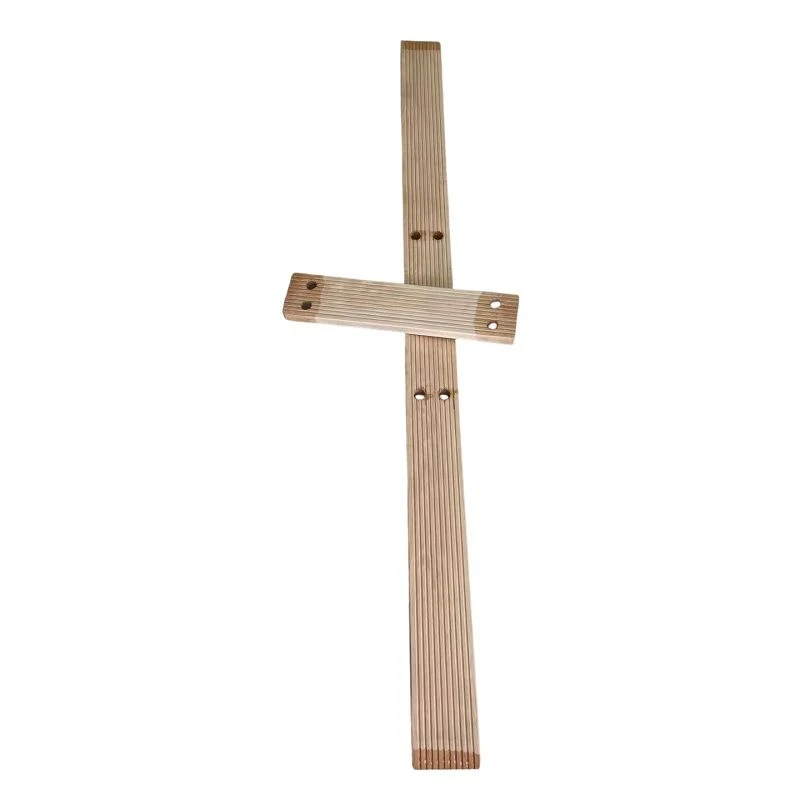

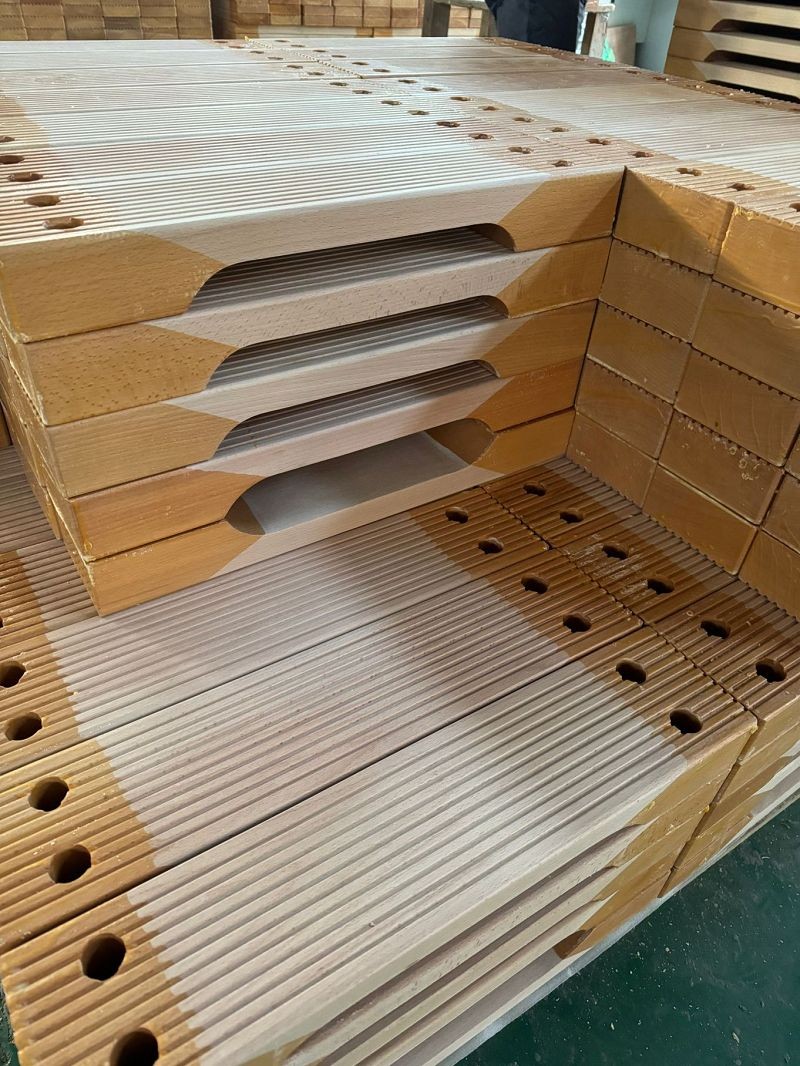

Length: 525mm (1800mm for pilot ladder wooden spreaders) Width: 115 mm Thickness: 28 mm (56mm for normalization type) |
|
Surface Treatment |
Natural wood surface, no paint/varnish (keep original friction coefficient) Both sides (including the 4 holes) are bee wax dipped to avoid moisture entering the wooden steps. |
|
Max Load Capacity |
More than 900Kgs |
|
Working Environment |
Salt water, high humidity, outdoor marine environment |
|
Standard Compliance |
SOLAS, ISO 799, ISO 5489, IMO regulations |
|
Weight (Single Piece) |
Different based on material & size |
Product feature
- Premium Raw Material: Selected high-density dried hardwood, no knots, cracks or defects, high structural strength and toughness.
- Standard Anti-slip Design: Retain natural wood grain without paint coating, stable friction to prevent slipping during boarding.
- Marine Grade Durability: Good resistance against seawater corrosion, moisture and UV aging, long service life at sea.
- Strict Standard Compliance: Fully conform to SOLAS and ISO 799/ SIO 5489, pass all marine safety inspections.
- Uniform Structure: Precise size and flat surface, keep horizontal after installation for stable standing.
- Customization Available: Support non-standard size, material and processing according to client demands.
Application
To be used for assembling of marine pilot ladder / ship embarkation ladder
Applicable Vessels: Ocean-going cargo ships, tankers, container ships, bulk carriers, passenger ships, offshore working vessels
Application Scenarios: Pilot boarding & disembarking, crew daily access, ship safety evacuation
Product Details
- Each wooden step is processed from a single whole hardwood plate, strictly choosen to remove defective materials before production.
- Edges are smoothly polished with round to avoid burrs and scratches; no chemical paint or varnish to ensure safety and friction performance.
- Pre-drilled mounting holes match standard pilot ladder side ropes and fittings, compatible with most mainstream pilot / embarkation ladders worldwide.
- Uniform density and stable hardness, not easy to deform, crack or warp under long-term marine environment.
- Each piece is individually checked one by one before delivery to guarantee quality.
FAQ
Q: Do your wooden steps comply with international ship inspection standards?
A: Yes. All products strictly follow SOLAS and ISO 799 / 5489 standards, widely used by some famous professional pilot / embarkation ladder manufacturers all over the world.
Q: What kind of wood do you use? Can I choose the material?
A: Most common used type is Beech, and some rubber tree (for low cost region). We support material selection and customization as your request.
Q: Can I get custom sizes for special pilot ladders?
A: Custom size, thickness and hole position are available. Simply send us the detailed drawing.
Q: Is the surface painted? Will it affect anti-slip performance?
A: No paint or varnish is allowed used. Natural wood surface maintains original friction coefficient, complying with the safety rules.

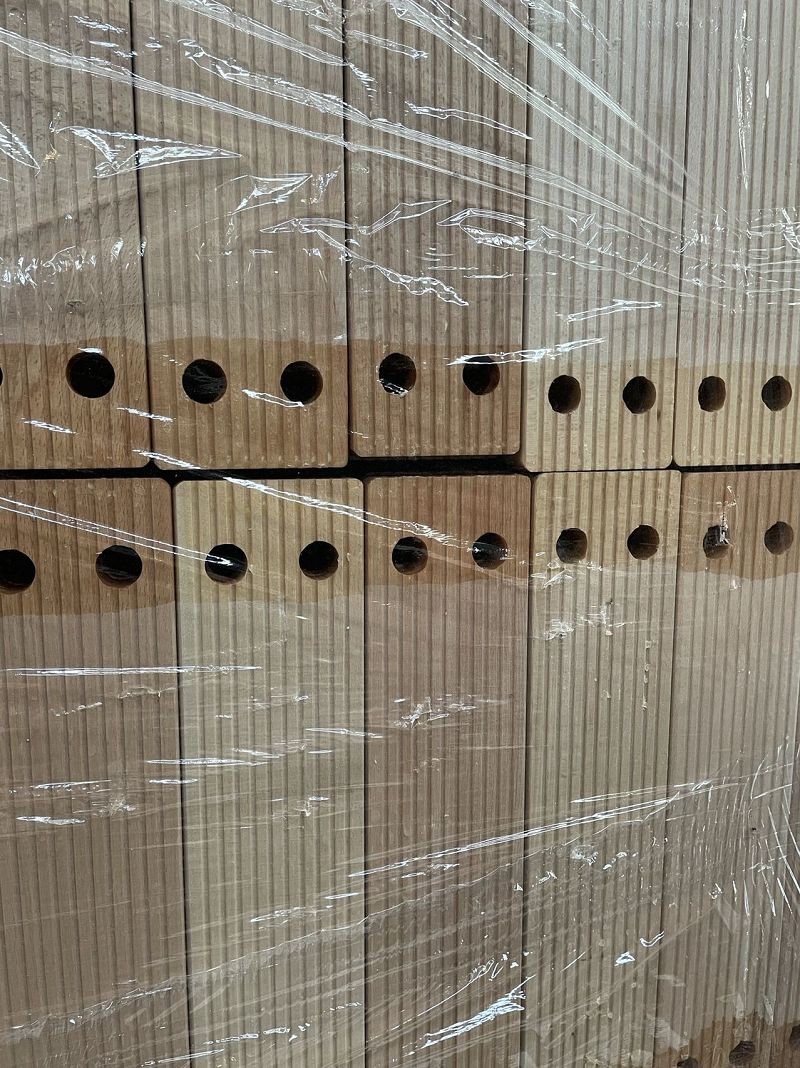

Q: How about the packaging for long sea transportation?
A: Adopt waterproof packaging, effectively prevent moisture, collision and damage during long-distance shipping.
Q: What is the minimum order quantity?
A: Small orders are not acceptable, due to CIQ requirement of the solid wooden products before exporting.
Q: How long is the service life in marine environment?
A: With normal use and regular maintenance, the service life can reach several years, adapting to high humidity and salt spray sea conditions.
