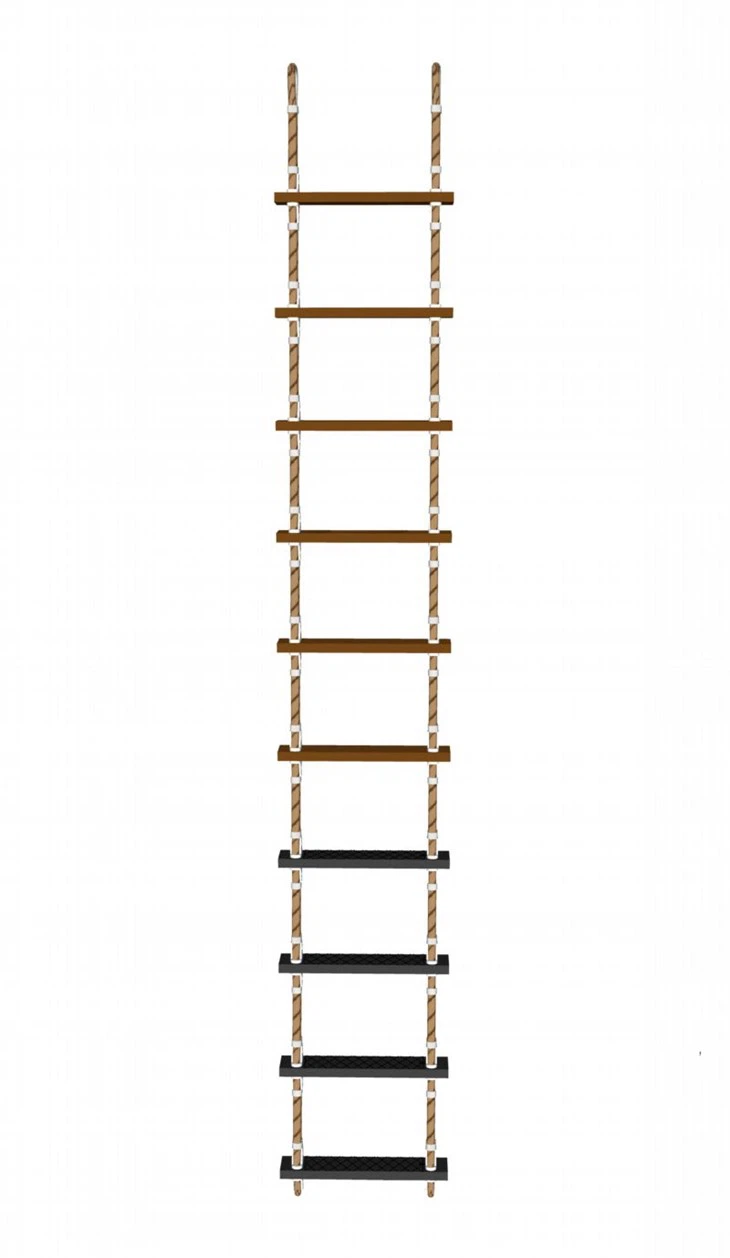

Product Introduction
An embarkation ladder is a critical safety device used in maritime operations, allowing crew members, passengers to board and disembark from vessels safely. These ladders are designed for use in various marine environments and are essential for ensuring safe access, especially in emergencies or during routine operations.
Product Parameter (specification)

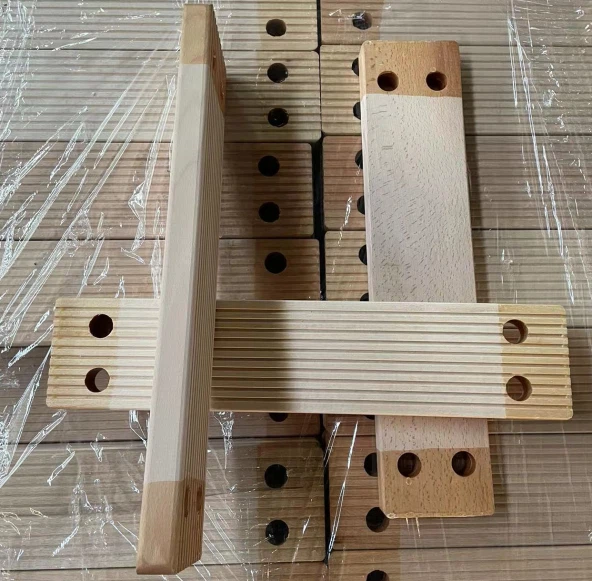

a)Short Step
Material: European Dried Beech Wood
Size: 525*115*28mm, anti-skid grooves on the surface; Holes: Diameter 25mm. Both end wax dipped. No paint.

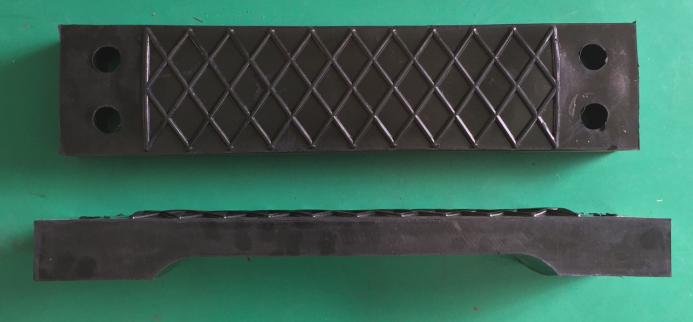

Material: Black Rubber with strong steel frame embedded;
Size: 525*115*45mm, anti-skid pattern on the surface; Holes Diameter: 25mm.

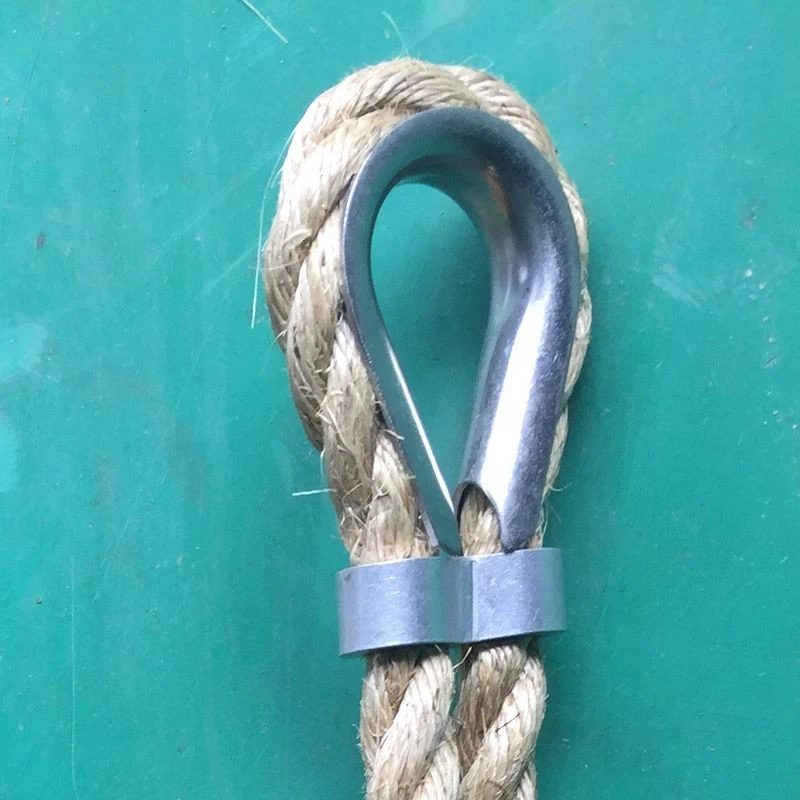

c)Thimble: Stainless Steel 316
e)Clamp:
Aluminum alloy ferrule, 5mm or 4mm thick, polished without sharp edges or burrs.
- Side Rope
Material: Pure 3-strand Sisal rope, Diameter: 22mm
Tensile strength: more than 24kN

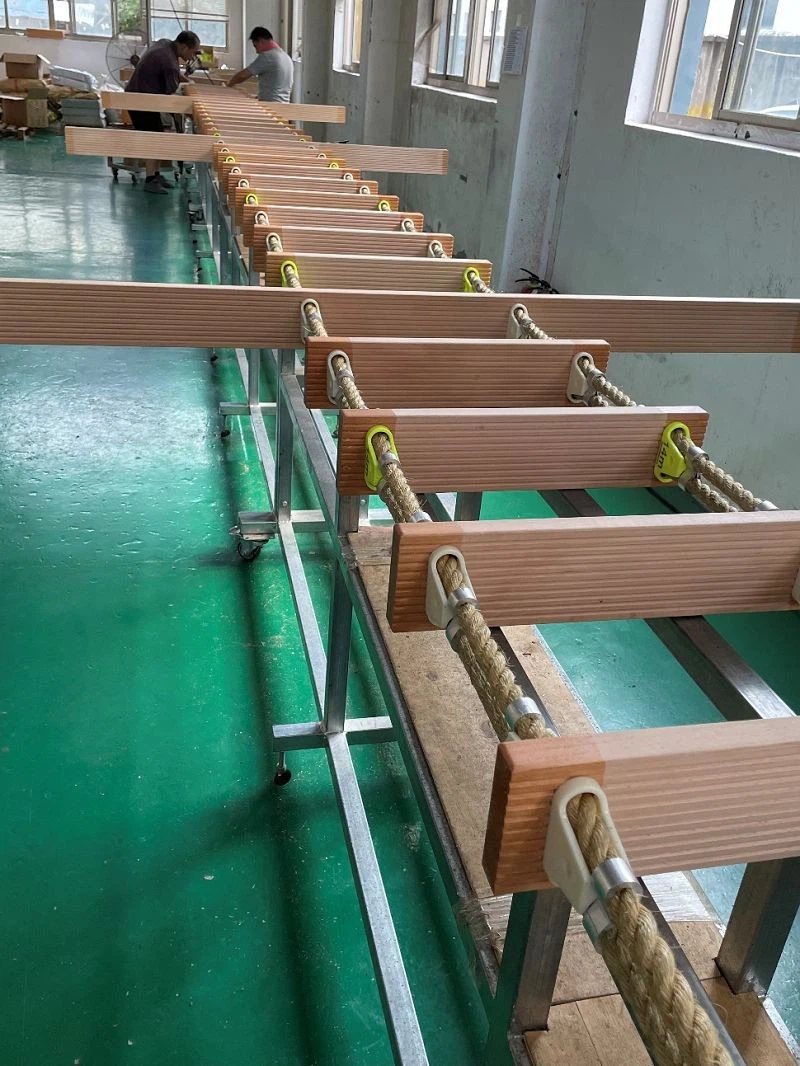

Construction
Applications of the Embarkation Ladder
a)Emergency Evacuations:
Used to facilitate the safe and efficient evacuation of crew and passengers in emergencies, such as fire or flooding.
b)Routine Access:
Allows crew members and passengers to safely board and leave the vessel during regular operations, especially in ports or harbors.
c)Access to Small Boats:
Used to transfer individuals between a larger vessel and smaller boats or tenders.
d)Training and Drills:
Employed in training exercises for crew members to practice boarding and disembarking procedures safely.
Product qualification
Testing Standard: IMO Res. MSC.81(70), as amended; ISO 5489:2024.
Reference Standards: Reg.1l/11 and Reg.11/34 of SOLAS 74 Convention, as amended; IMO Reg.MSC.48(66)- LSA Code, as amended
MED B and D approved by DNV or RINA
Deliver, shipping and service

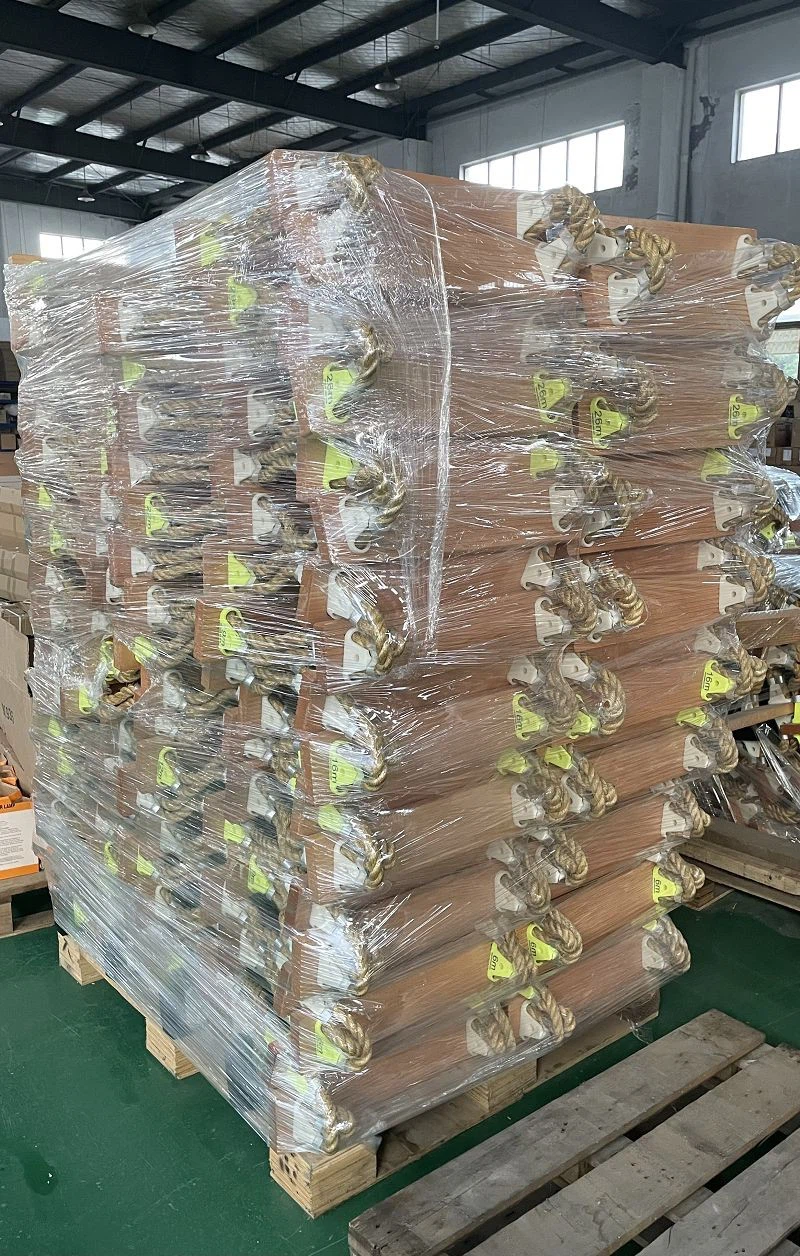

Packed in Rolls with necessary cover, stacked on pallets with PE film wrapped, typical seaworthy packing
Download
FAQ
Q: What is a marine embarkation ladder?
A: A marine embarkation ladder is a safety device used to facilitate safe boarding and disembarking of crew members and passengers from vessels, especially during emergencies.
Q: What materials are commonly used for marine embarkation ladders?
A: Marine embarkation ladders are typically constructed from lightweight, durable materials such as wood, aluminum or fiberglass, often with non-slip steps made of reinforced plastic or hardwood.
Q: What are the key safety features of embarkation ladders?
A: Key safety features include non-slip steps, handrails for support and rapid deployment capabilities for emergencies.
Q: How should an embarkation ladder be deployed?
A: The ladder should be securely attached to a fixed point on the vessel, ensuring it hangs vertically and is free of obstacles before being lowered into the water.
Q: Can embarkation ladders be used in rough sea conditions?
A: While designed for stability, their use in rough sea conditions should be assessed carefully. If conditions are too severe, using the ladder may not be safe.
Q: How often should an embarkation ladder be inspected?
A: Embarkation ladders should be inspected regularly, ideally before each use, and undergo thorough checks as part of the vessel's maintenance schedule.
Q: Who is responsible for the maintenance of embarkation ladders?
A: The vessel's crew is responsible for maintaining and inspecting the embarkation ladder, ensuring it is safe and compliant with regulations.
Q: What should be done if an embarkation ladder is found to be unsafe?
A: If an embarkation ladder is deemed unsafe, it should be taken out of service immediately, and necessary repairs or replacements should be arranged before it can be used again.
Q: Are there training requirements for using embarkation ladders?
A: Yes, crew members should receive training on the proper use, deployment, and inspection of embarkation ladders to ensure safety during boarding and disembarking procedures.
Q: What certifications can you provide?
A: We offer MED B and D approval by DNV or RINA as per Directive 2014/90/EU on marine equipment (MED).
Q: What are the payment terms of EMF Marine?
A: Normally T/T 100% in advance for small orders. T/T 30% against order and balance before shipment for large orders. But we can discuss on special payment terms for some special orders.
Q: What are your general delivery terms?
A: EXW, FOB are the general terms we offer. CIF, FCA is less and less offered due to quick changes on freight in current unstable shipping market.
