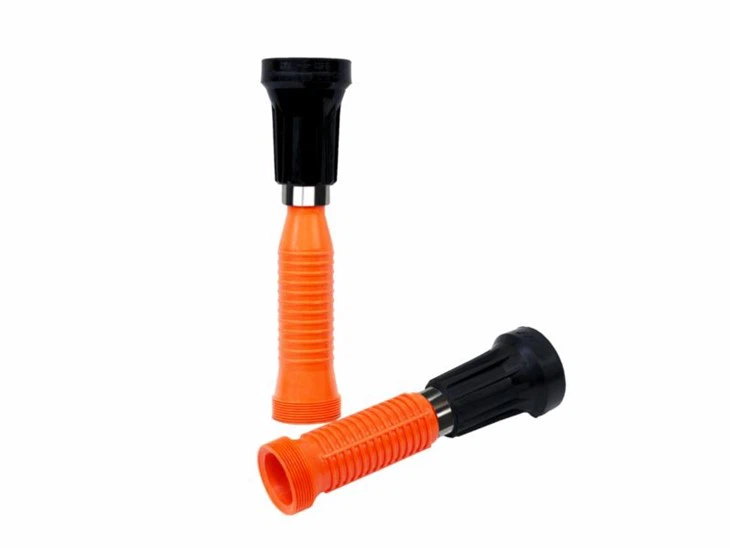

Dual Purpose Nozzle

This Jet/Spray Dual Purpose Fire Hose Nozzle is designed for use with fire hoses on board vessels or offshore platforms.

Offered in 12, 16, and 19 mm sizes, it delivers a versatile hollow spray with a freely adjustable angle, ensuring optimal firefighting.

This essential maritime tool guarantees efficient performance for various onboard applications.

This jet/spray DUAL PURPOSE nozzle has been SOLAS/MED/MER approved by DNV.

Designed and tested as per EN15182-1:2019 and EN15182-2:2019, this fire hose nozzle is easy to maintain and service.

This dual purpose nozzle complies with the most updated regulation and standard.

This spray/jet type branchpipe has a long throw distance combined with a significant cooling effect.

One nozzle fits all fire hose couplings. The obvious advantage of this HS jet spray nozzle is that the nozzles complied with different types of firehose couplings by using various adaptors. For marine ship suppliers, you can now keep stocks of the universal size of fire hose nozzles only. When you have demand of different type of nozzles, you can simply assemble the fire hose set with the adaptors. By choosing this nozzle, you will undoubtedly reduce stock amount and space.

The dual purpose jet/spray water nozzle is easy to handle and made in robust design to withstand harsh environment onboard vessels. The branch pipe operates continuously from straight stream to spray jet by turning the rubber coated head of the jet spray nozzle.

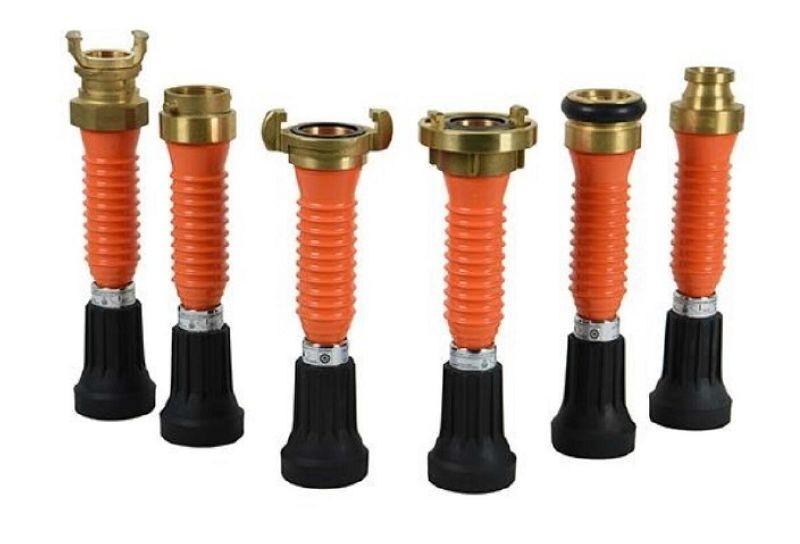

Y Series Jet Spray Nozzles with Various Adaptors, SOLAS/MED Approved by DNV

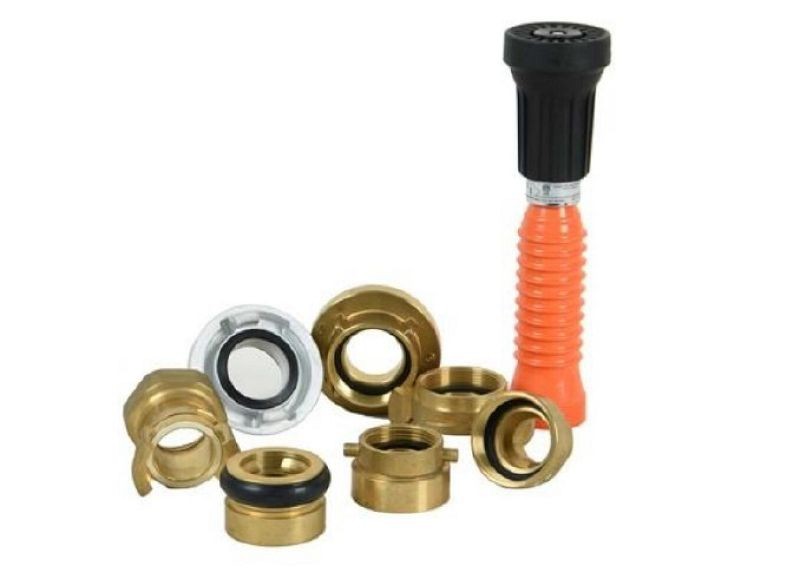

Fire hose Nozzles Suitable for Marine Fire-fight Purpose Connecting Fire hoses by Adaptors

The body of the head is made of brass with chrome plated, so this nozzle has superior anticorrosive feature, suitable to use in terrific marine environment. The head is covered with heavy duty protective rubber. The rotating head of the nozzle is made of rubber and various configurations. The handle is made of extremely high impact resistant and durable thermoplastic with glassfibre reinforced. The valve plate was made by import plastic material.

Y12 fire hose nozzles are easy to adjust continuously from shut off via a hollow straight stream to a spray jet between 0 and 120° b y turning the rubber coated head of the nozzle. They deliver a wide range of droplets. Large droplets and longer throw distances when the straight stream is selected. A fine spray jet with its centre directed forwards is produced by means of spray teeth with specially designed deflection surfaces.

Y12 (12mm), Y16 (16mm), Y19 (19mm), the inlet BSP 2" (50MM) male threads.

The HS jet/spray nozzle is widely used for marine and offshore fire-fighting, assembled with a firehose through coupling. This jet/spray nozzle is extremely suitable for marine environment with great functional and economical features. They should be used for firefighting only and not for washing the deck or other applications.

a)Type: Y12/ Y16 / Y19 (Delivered without adaptor or with Adaptors According to orders).
b)Material: Durable seawater resistant materials and high impact resistance material
c)Inlet Connection: 2" BSP male thread
d)Dimensions: 291(L) x 76(D) mm
e)Weight: Approx. 0.8 kg without coupling
f)Approval: MED approved, comply with EN 15182-1:2019 and EN 15182-2:2019
g)Flow rate, straight jet (ltr/min): 236
h)Effective throw, straight jet (m): 28.5
i)Working pressure: 16 bars

a)Low pressure loss
b)Easy to handle design
c)Light weight, less than 1kg
d)Full corrosion resistance against sea water.
e)Maintenance-free and long lifecycle
f)Low operating forces
g)Resistant to harsh marine environment


 MED APPROVED BY MED SHIPS WHEEL MARK, MEET

 SOLAS REQUIREMENT

Standard Packing, 20 pcs in one Carton, Cartons then on Pallets, fully wrapped with PE film, typical seaworthy packages.
