Product Introduction
The pilot ladder is essential equipment for pilots to board and leave ships, and the rubber step is the mandatory part for the lower parts of the pilot ladder or embarkation as required by regulations.
This rubber step adopts fine rubber compounds with built-in reinforced steel structure, strictly produced according to the specifications, with standardized size, stable performance and strong loading capacity. It can adapt to wet, salty and bumpy working conditions at sea, effectively protecting the personal safety of pilots or passengers.
Product Parameter (specification)
|
Item |
Technical Data |
|
Applicable Standard |
SOLAS, ISO 799, ISO 5489 |
|
Overall Length |
525 ~ 530 mm |
|
Center Distance of Rope Holes |
About 425 mm |
|
Width |
≥ 115 mm |
|
Thickness |

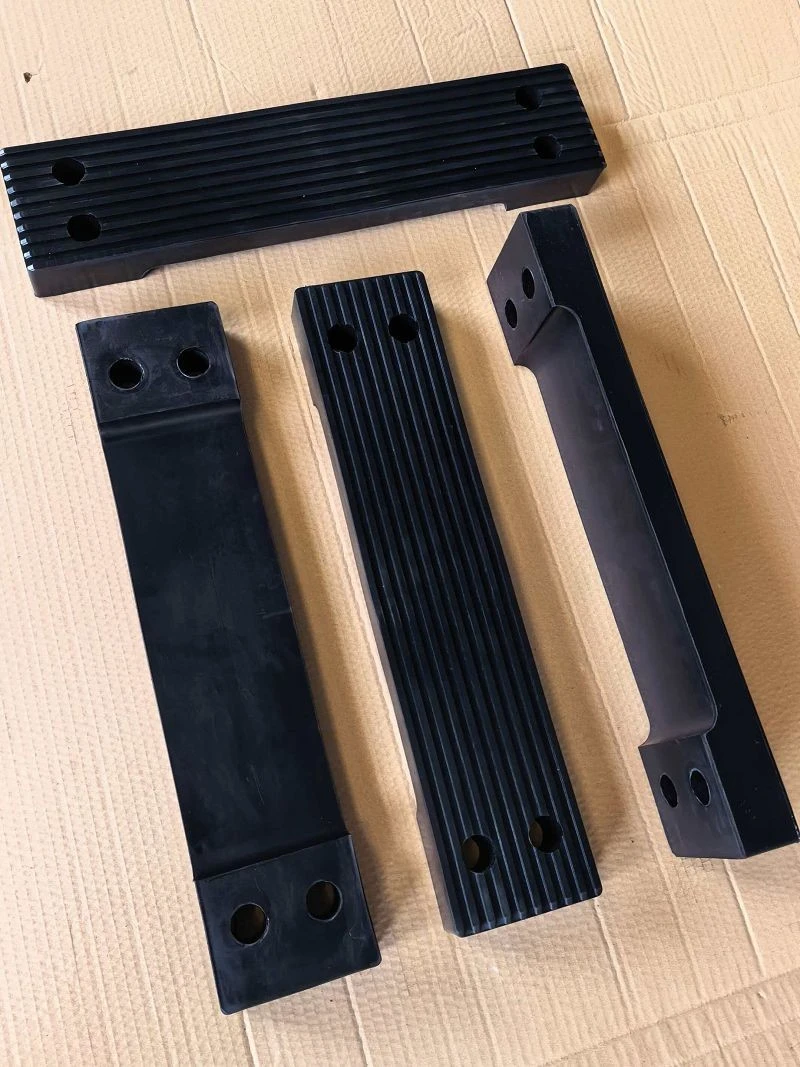

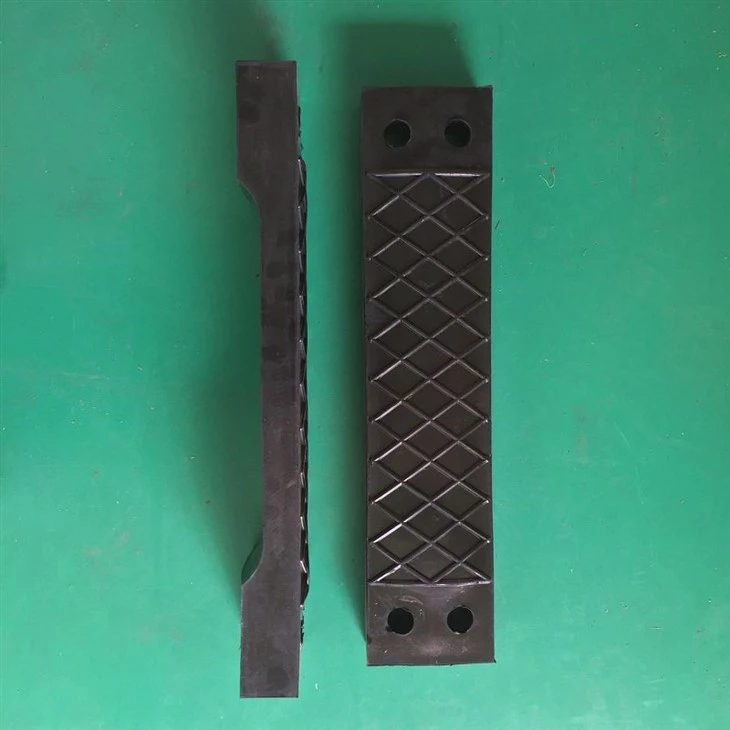

≥ 28 mm (Standard: 45mm, 60 mm, 80mm) |
|
Hole Diameter |
25 mm |
|
Main Material |
Rubber composite with steel reinforcement |
|
Rated Load Capacity |
≥ 11 kN, 88kN for some models. |
|
Suitable Side Rope Diameter |
Φ18 ~ 22 mm |
|
Single Unit Weight |
Approx. 4 kg |
|
IMPA Code |
232003 |
We have several types of rubber steps for our customers to choose from. Contact us for more details.
Product feature

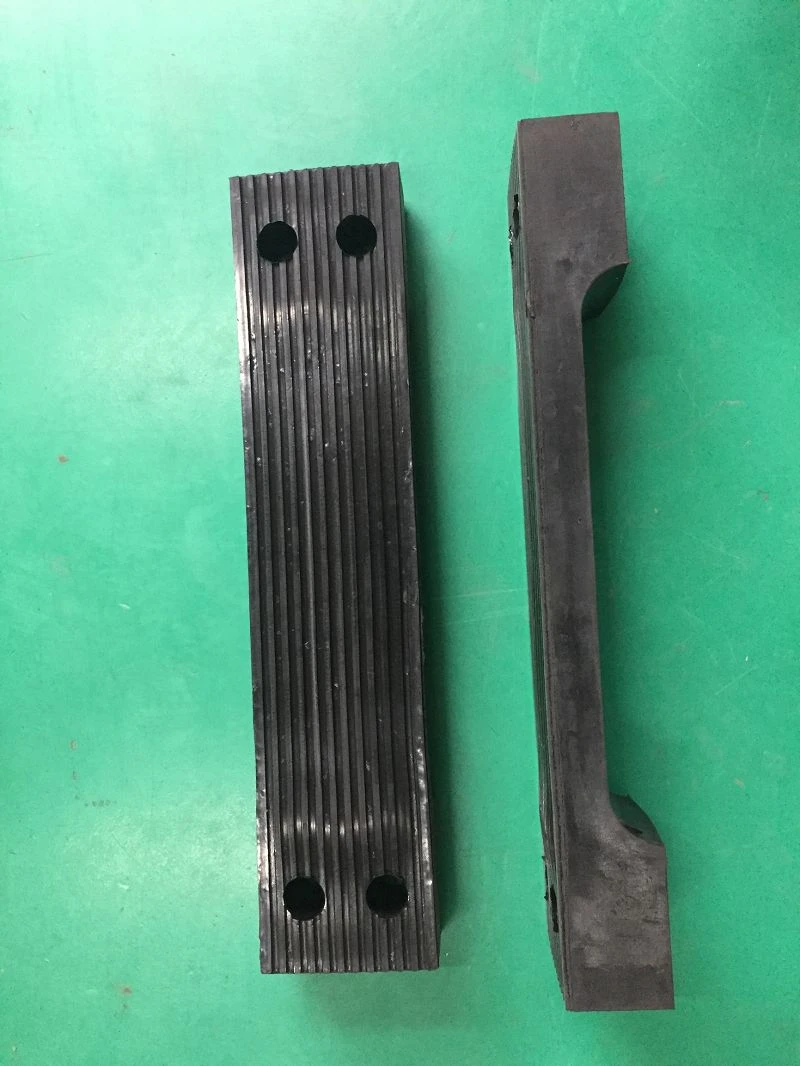

- Super Anti-slip Performance: Surface with V-shaped drainage grooves and longitudinal anti-slip lines, rapid water drainage, no water accumulation, excellent anti-slip effect even in wet state.
- High Strength & Durability: Integrated molding plus internal steel consturction reinforcement, anti-deformation, anti-impact, resistant to seawater, oil stain and aging, long service life.
- Shock Absorption & Comfort: Elastic rubber material buffers impact force when stepping, reduces fatigue and injury risk for users.
Application
To be used for assembling of marine pilot ladder / ship embarkation ladder, as bottom 4 rungs only.

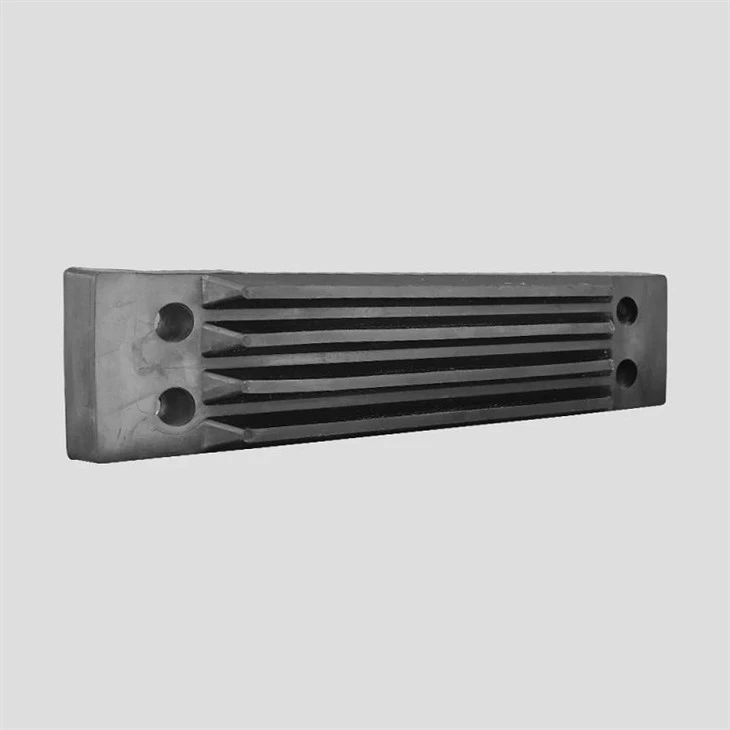

Product Details

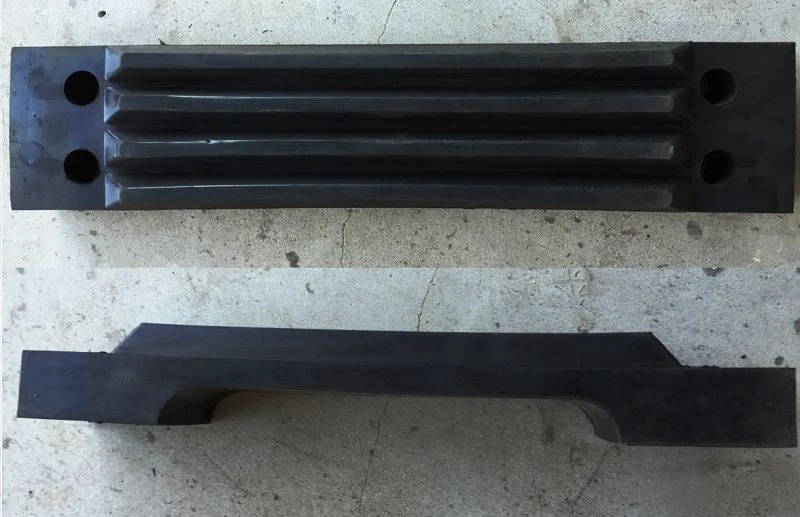

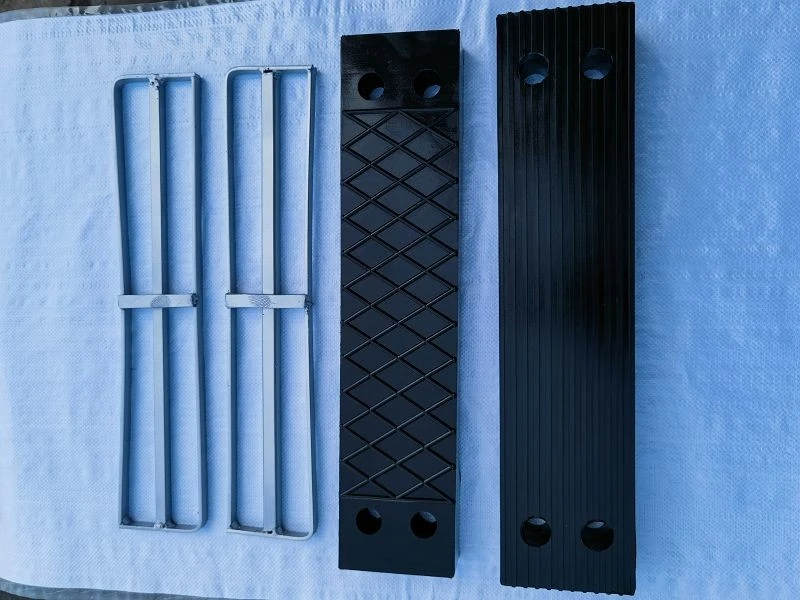

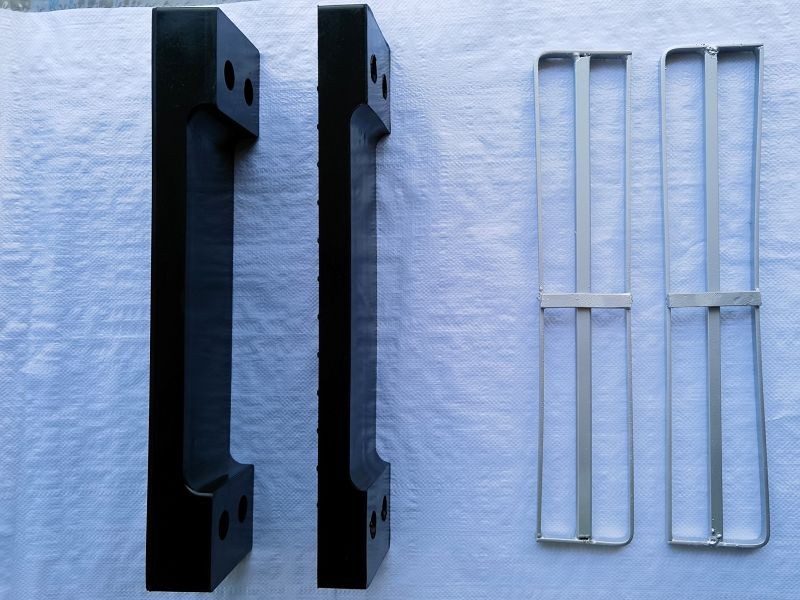

- Structure: One-piece molded rubber body with reinforcing steel frame embedded.
- Rope Holes: Two standard rope holes at each end, smooth inner wall, fit tightly with side ropes.

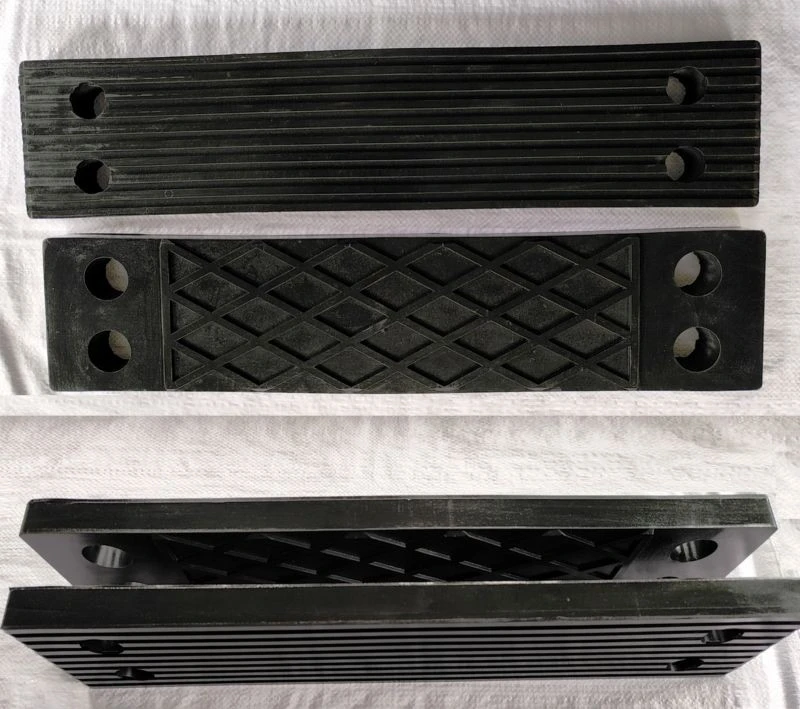

- Surface: Professional anti-slip texture and drainage structure, specially designed for marine environment.
FAQ
Q: How many rubber steps are required for one standard pilot ladder?
A: According to ISO 799 or ISO 5489, the bottom 4 steps of the pilot ladder must adopt rubber steps.
Q: Is this product suitable for all types of pilot ladder side ropes?
A: It fits side ropes with diameter 18~22 mm, which is the common specification for standard marine pilot ladders.
Q: What is the service life of the rubber step?
A: Under normal use and regular maintenance, the service life is 3-5 years, depending on actual marine working conditions.
Q: How to maintain the rubber step in daily use?
A: Regularly clean dirt and oil on the surface; check cracks and abrasion periodically; store in dry and ventilated place when not in use, avoid long-term direct sunlight.
