Product Introduction

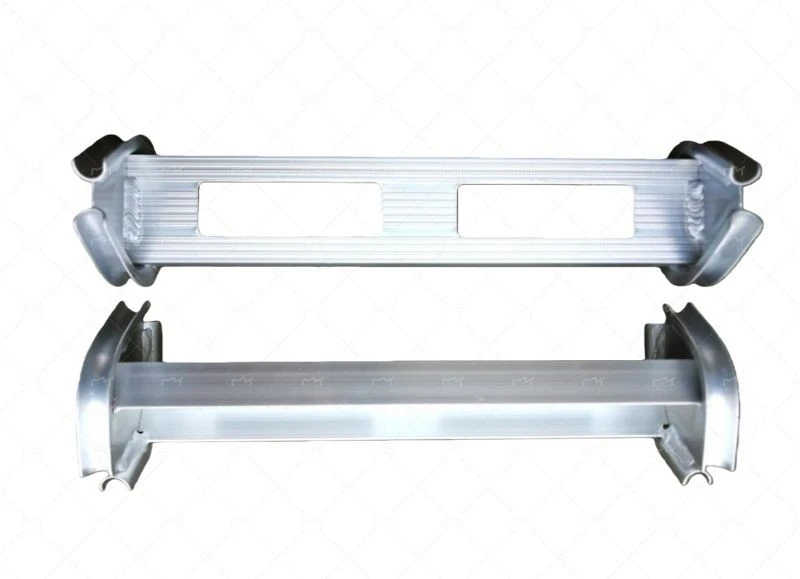

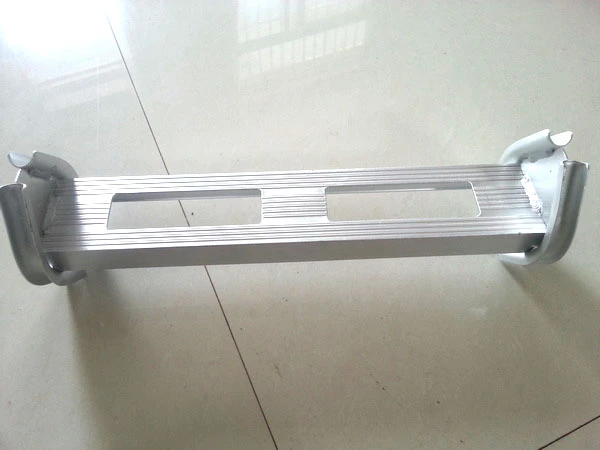

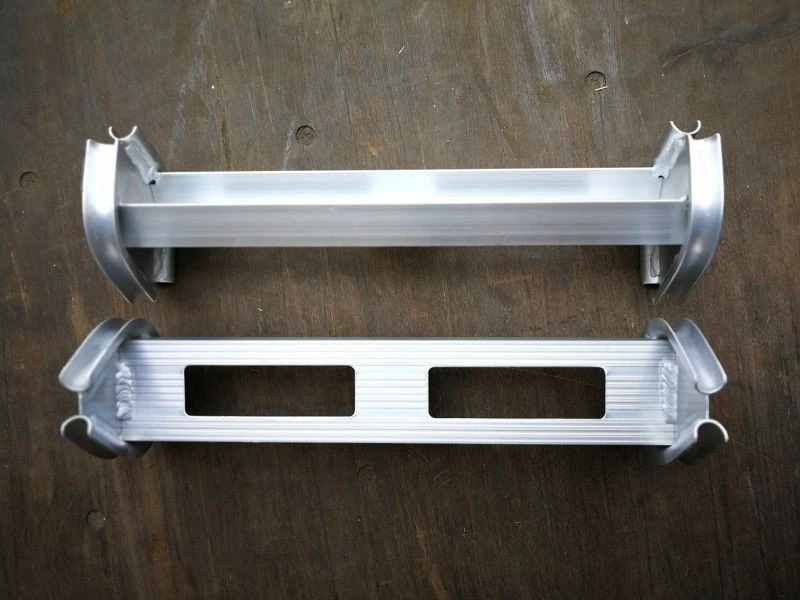

GS-A Aluminum Steps are manufactured from high strength corrosion resistant marine grade aluminum alloy, formed as a one-piece rigid profile with antis lip surface and reinforced rope eyelets. They are light weight, high load capacity, and excellent seawater resistance. Widely used on cargo vessels, tankers, container ships, offshore platforms.
Product Parameter (specification)
|
Item |
Specification |
|
Model |
GS-A |
|
Type |
Rope ladder / pilot ladder aluminum step |
|
IMPA No. |
232021 |
|
Material |
High-strength aluminum alloy (marine grade) |
|
Length |
462 mm |
|
Width |
117 mm |
|
Suitable rope diameter |
φ18–22 mm |
|
Surface finish |
Anti-slip grooves, anodized for corrosion resistance |
|
Compliance |
To the IMPA description |

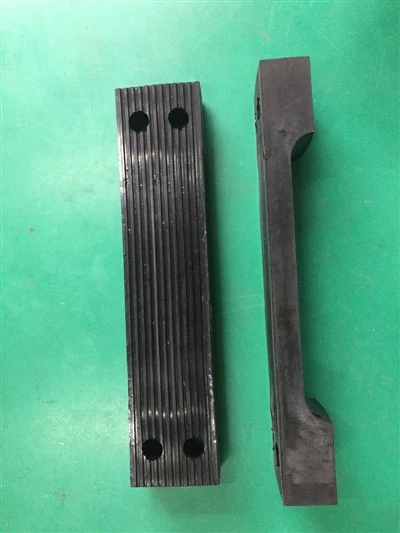

We have several types of wooden steps, rubber steps of rope ladders for our customers to choose from. Contact us for more details.
Product feature
- Lightweight & High Strength: Aluminum alloy construction reduces weight while maintaining high rigidity and load capacity.
- Marine Grade Corrosion Resistance: Resists seawater, moisture, and UV exposure; ideal for harsh marine environments.
- Anti slip Surface: Textured finish ensures secure footholds even when wet.
- One-Piece Rigid Structure: No loose parts; maintains horizontal position, resists twisting.
- Easy Installation & Replacement: Fits standard pilot ladder side ropes; simple to fit and replace on site.
- Long Service Life: Far more durable than wooden steps; low maintenance.
Application

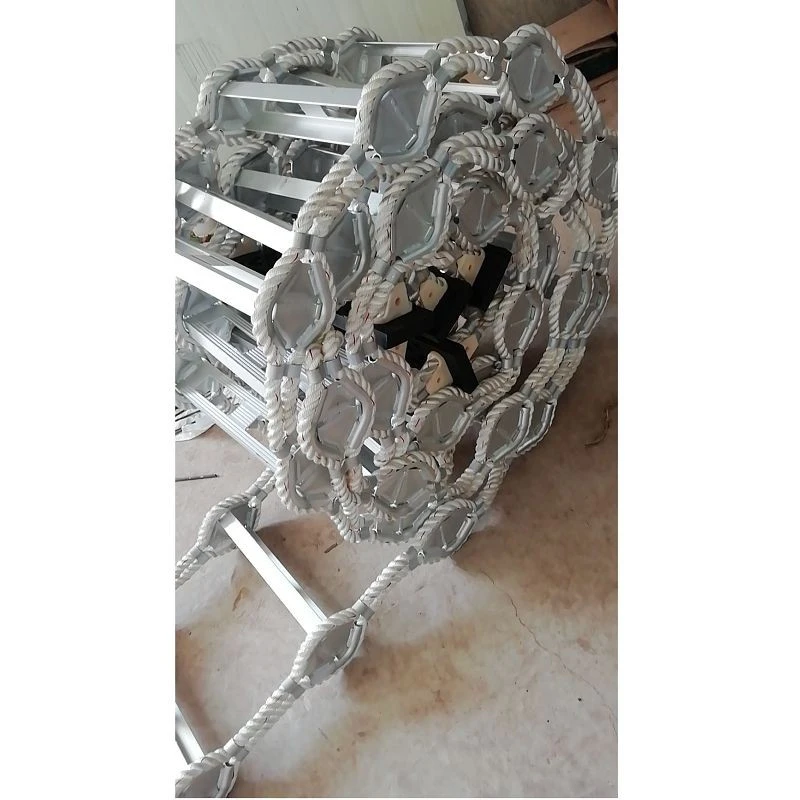

To be used for assembling of marine rope ladders.
Product Details
- Structure: One-piece molded rubber body with reinforcing steel frame embedded.
- Rope Holes: Two standard rope holes at each end, smooth inner wall, fit tightly with side ropes.
- Surface: Professional anti-slip texture and drainage structure, specially designed for marine environment.
FAQ
Q: Are GS-A steps suitable for the bottom 4 steps of a pilot ladder?
A: No. Bottom 4 steps must be rubber steps per SOLAS; GS-A aluminum steps are for the 5th step and above.
Q: What is the maximum temperature these steps can withstand?
A: −40 °C to +80 °C; suitable for all marine climate zones.
Q: Do you offer custom lengths or widths?
A: No. This is a standard size item.
Q: How to maintain GS-A aluminum pilot ladder steps?
A: Rinse with fresh water after saltwater exposure; inspect eyelets and tread for wear annually; avoid paint or heavy coatings that may hide cracks.
