Product Introduction

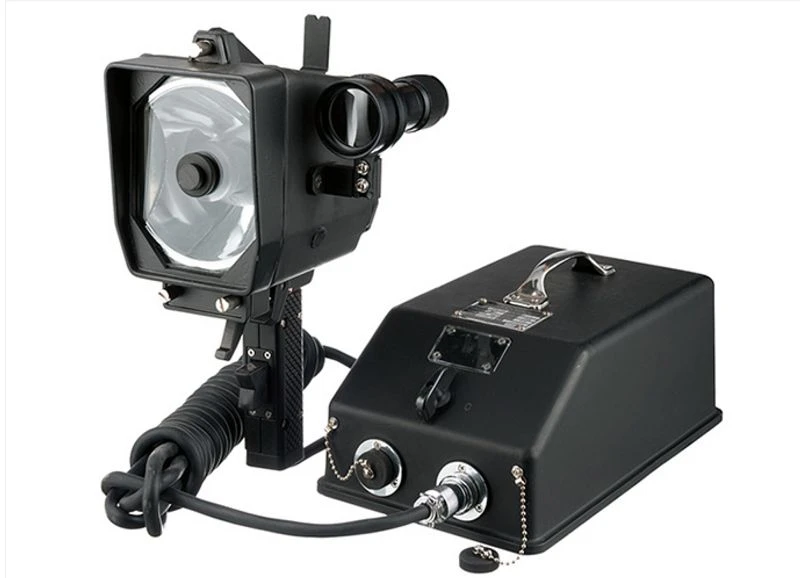

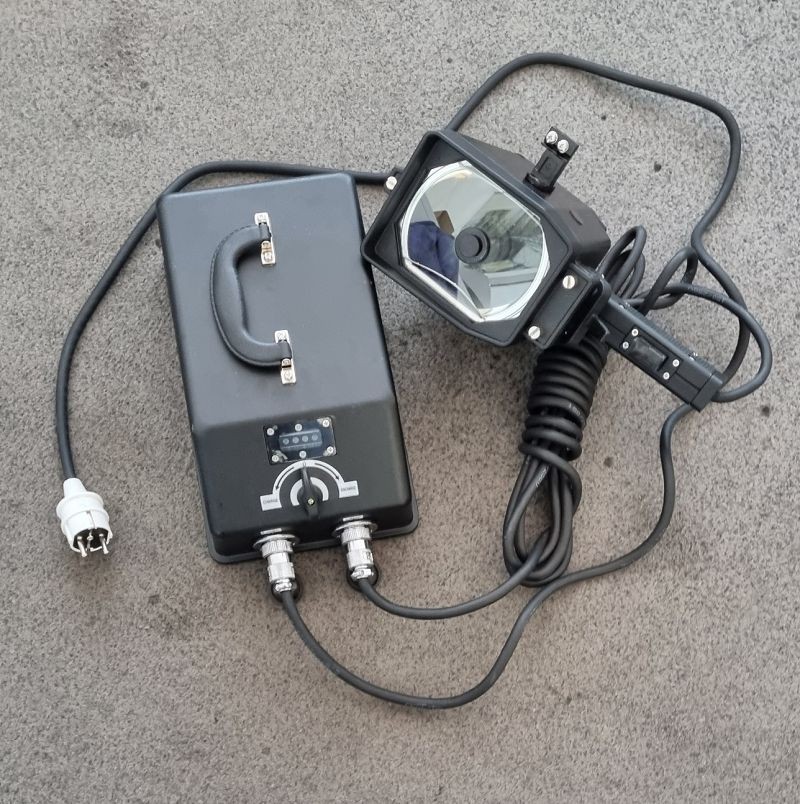

The CXD8 daylight signaling lamp is supplied with battery charger and power box (two-in-one) CXD8-DYX, flexible switching of wired power supply and battery power supply.
This signaling lamp features compact overall structure, portable body design and simple on-site operation and carrying. It strictly complies with international marine industry standards, with standardized performance and reliable quality. With excellent environmental adaptability, it can work stably in a wide temperature range and humid, salt-spray marine environments, covering daily navigation signal communication, offshore engineering operation signaling and marine safety warning scenarios, and is widely applicable to marine vessels and offshore facilities.
Product Parameter (specification)
- Testing standards: IEC 60945:2002 incl. IEC 60945 Corr. 1:2008, ISO 25861:2007
- Reference standards: SOLAS 74 as amended, Reg. V/18, V/19 and X/3, IMO Res. A.694(17), IMO Res. MSC.95(72), IMO Res. MSC.36(63)-(1994 HSC Code), IMO Res. MSC.97(73)-(2000 HSC Code)
- Rated voltage: DC24V
- Power: 60W
- Illuminant: LCY24-60C ungsten halogen lamp (White)
- Lamp holder: 6.35
- Beam angle: 6°
- Telescope magnification: 4
- Telescope visual angle: 3°
- Visible distance: 2n.m
- Protection class: IP66
- Cable outside diameter: Φ9.5
- Standard compasses safe distance: 85cm, Steering compasses safe distance: 45cm
- Weight: 2.6kg
- Annex：Power CXD8-DYX input voltage AC110-220V 50/60Hz, output voltage DC 24V, 6Ah, equipped with WF24 four pin (25M-4A), IP66, weight: 6.5kg, Charging time ≤ 10h, Discharging time ≥2h
Product feature
Stable Daylight Signaling Performance: Equipped with precision mechanical flash device and professional light angle calibration technology, the lamp outputs uniform and concentrated high-brightness light. It maintains clear and distinguishable signaling effects in strong daylight, realizing stable long-distance signal transmission with a visible distance up to 2 nautical miles, effectively solving the problem of weak signal identification of ordinary lamps under daylight.
Flexible Power Supply Mode: Matches dedicated charger and battery power box modules, supporting AC commercial power supply and battery DC power supply switching. It can adapt to fixed ship power supply and mobile temporary operation scenarios, with strong on-site adaptability and no restriction of power supply conditions.
High-Level Waterproof & Dustproof: The whole machine reaches IP56 protection grade, with fully sealed structural design. It effectively blocks seawater splashing, rainwater penetration and dust accumulation, ensuring stable internal circuit and mechanical structure operation and avoiding failure caused by marine environmental erosion.
Lightweight & Easy Operation: The overall body is lightweight and portable. It is convenient for carrying and supports quick wiring and plugging use, reducing on-site operation difficulty and improving working efficiency of marine signal communication.
Standardized & High Compatibility: Strictly complies with international marine industry standards, with universal standard interfaces and accessories. It is compatible with most ship power supply systems and marine supporting equipment, featuring low matching threshold and wide application range.
Application
The CXD8 daylight signaling lamp is professionally applied to marine daylight signal communication and safety warning, widely covering various marine industry scenarios such as Ship-to-Ship Communication, Offshore Engineering Operation etc.
Product Details
Precision Optical Lens: Adopts high-transmittance professional optical lens, with precise 6° light pillar angle and 3° telescope viewing angle design. The light is concentrated without scattering, ensuring long-distance high-definition signal identification and avoiding light diffusion causing unclear signal transmission.
Stable Mechanical Flash Structure: Built-in optimized mechanical flash device with stable operation, uniform flash frequency and no stuttering. It supports long-term continuous flashing work, effectively avoiding signal interruption caused by structural failure and ensuring continuous and effective signal transmission.
Cast Aluminum Anti-Corrosion Shell: Integrally cast with high-strength aluminum alloy, with surface anti-oxidation and anti-corrosion treatment. It resists marine salt spray erosion and ultraviolet aging, maintaining stable structural performance and appearance for long-term marine use.
Standard Waterproof Interface: Equipped with 25M series professional waterproof pin plug, with tight fitting and good sealing performance. It prevents water and dust from entering the interface, ensuring stable power supply and signal transmission in humid and splashing environments.
Product qualification
SOLAS MED approved by RINA, SOLAS CCS approval
Download
FAQ
Q: What power supply modes does the CXD8 daylight signaling lamp support?
A: It supports dual power supply modes of AC commercial power and DC battery power.
Q: What is the effective visible distance of the lamp in daylight?
A: Under standard daylight environment, the maximum effective visible distance of the CXD8 daylight signaling lamp reaches 2 nautical miles.
Q: What is the difference between CXD8 halogen version and CXD8-L LED version?
A: The halogen version has a rated power of 60W with stronger instantaneous brightness, suitable for long-time high-intensity signal operation scenarios; the LED version has a low power of 6W, featuring energy saving, low heat generation and longer light source service life, which is more suitable for long-term continuous standby and daily frequent use scenarios. Both versions have the same visible distance and protection grade. While for overseas customers, we supply CXD8 only due to transportation restriction of the lithium batteries built-in the power box of CXC8-L.
Q: Can the lamp work normally in harsh marine environments?
A: Yes. The whole lamp has IP66 waterproof and dustproof performance, and the cast aluminum shell has excellent salt spray corrosion resistance. It can work stably in a wide temperature range, adapting to marine humid, windy, rainy and salt spray harsh environments, with strong environmental adaptability.
Q: How to maintain the daylight signaling lamp daily?
A: It is recommended to regularly clean the surface dust and salt spray of the optical lens and shell to avoid affecting light transmission; check the tightness of the waterproof plug and sealing structure before use; regularly inspect the light source and circuit stability, and replace aging light sources in time. Keep the power box and charger dry and clean during daily storage. Charge the batteries at least once per 6 months if not in regular use.
Q: Is the product suitable for all types of marine ships?
A: Yes. The product has universal standard interfaces and performance parameters, complying with international marine unified standards. It is widely applicable to cargo ships, passenger ships, engineering ships, offshore platforms and various marine operation facilities, and can meet the daylight signal communication needs of most marine equipment.
