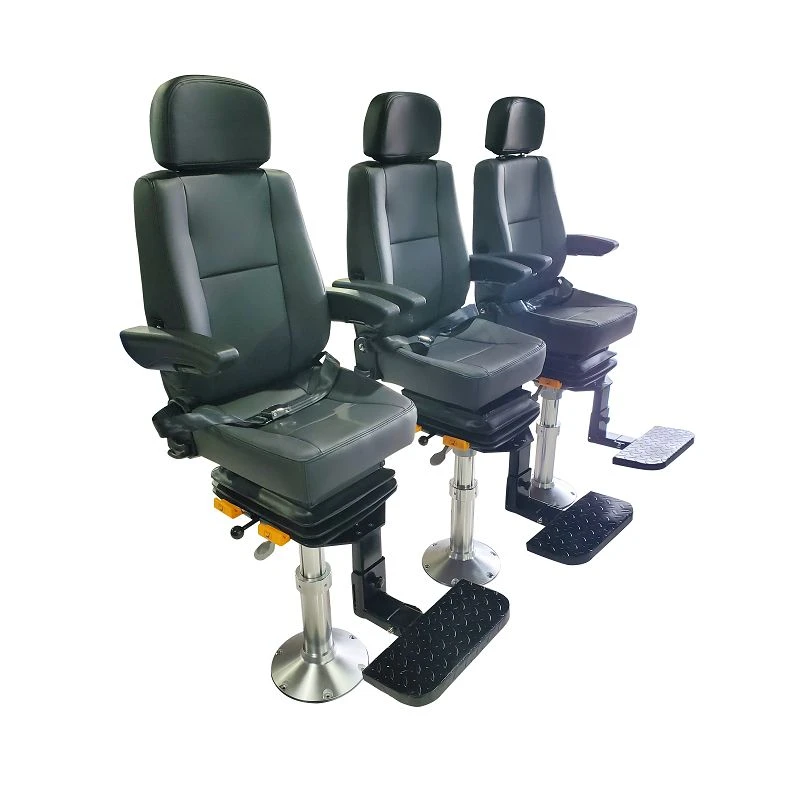

Product Introduction
TR-002 pilot chair adopts high-strength metal frame and high-elasticity cushion material. It integrates 360° rotation, height adjustment, backrest reclining and front-back sliding functions. All adjustment structures are stable and wear-resistant. The overall design complies with ergonomic standards, effectively reducing operator fatigue during long shifts. It is a cost-effective standard seat for pilot.
Product Parameter (specification)
- Model: TR-002
- Main Frame Material: High-strength steel + aluminum alloy
- The seat lifting and tilting, move back and forth, back angle adjusting are used in steel structure;
- The seat back and the seat cushion adopts the steel inner core and PU cold foam forming disposable sponge synthesis, outsourcing leather or cloth;
- Steel structure for the footrest;
- Pneumatic lifting core components pneumatic bar the use of German imported Stabilus;
- Surface Material: Wear-resistant PU leather (Genuine leather on request).
- Cushion Material: High-density cold-molded PU foam
- Upper part of the seat can be moved back and forth of120mm,height adjustment 60mm, seat inclination angle range of ±12°;
- Seat backrest with adjustable angle of 85 ° -150 ° , the headrest adjusted up and down 50mm, handrest multi-point positioning control;
- The seat of pneumatic lifting regulating range 0-150mm;
- The seat can rotate 360 ° and locked ,4-point positioning control;
- Seat pedal can rotate 90° and regression;
- Seat can bear more than 150FT.LB torsion, reached AD grade standard;
- Standard Color: Black (custom color available upon request)
Product feature and application
- Ergonomic Design: Fit human body curve, with lumbar and head support to relieve long time sitting fatigue.
- Full Adjustable Functions: Support height, angle, sliding and rotation adjustment, adapting to different operator heights and operation habits.
- Stable and Durable: Reinforced metal frame, anti-rust and anti-wear, suitable for long-term frequent use.
- Comfortable Experience: Thickened high-elastic foam cushion, not easy to deform; soft padded adjustable armrests.
- Simple Operation: All adjustments can be completed by one hand.
Download
FAQ
Q: Can the chair adapt to different cabin sizes?
A: Yes. It supports multi-direction adjustment and flip-up armrests, adaptable to most standard operation cabin room.
Q: Is the lifting and rotating function smooth?
A: Yes, it features smooth adjustment, no noise and jamming.
Q: Can custom colors and logos be made?
A: Yes. Support personalized customization of color, LOGO and partial functional upgrades for bulk orders.
Q: How to maintain the pilot chair?
A: Wipe the leather surface regularly; keep adjustment joints clean and dry; avoid long-term overloading.
Q: What is the load-bearing limit?
A: The maximum safety load is 150kg, meeting most professional operation needs.
