Product Introduction

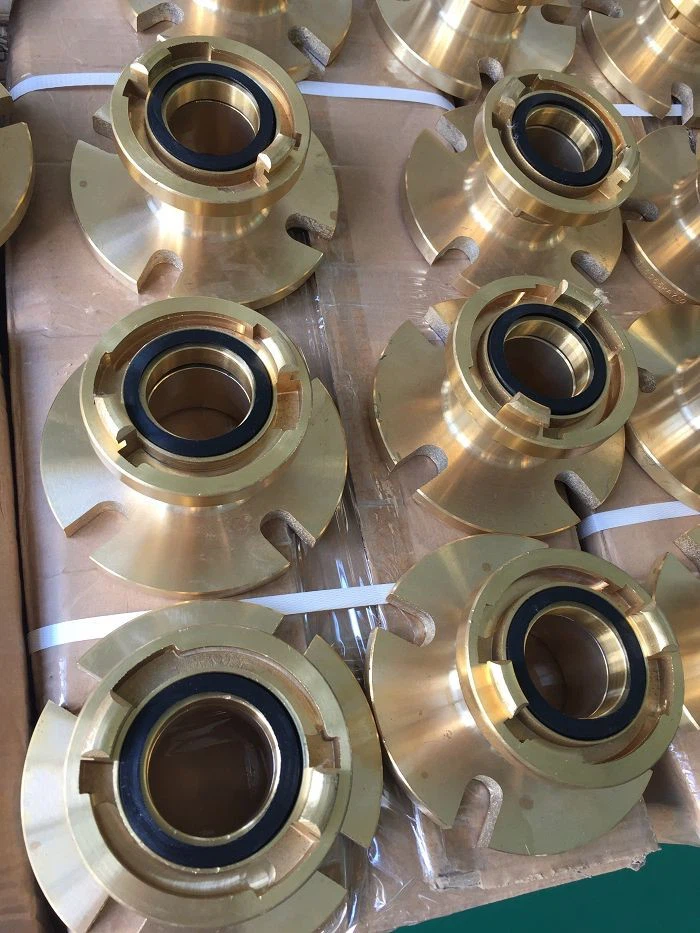

The International Shore Connection (ISC) is a critical safety component mandated by the International Maritime Organization (IMO) under SOLAS (Safety of Life at Sea) regulations. It allows firefighting water systems from different vessels or shore-based fire hydrants to interconnect seamlessly during emergencies. Manufactured from high-quality brass, this connection ensures durability, corrosion resistance, and compliance with SOLAS regulations for fire safety.
Our BRASS ISC is precision-engineered to meet SOLAS, and IMO MSC.1/Circ.1433 standards, ensuring compatibility across global maritime operations.
International Shore Connection SOLAS approved
Product Parameter (specification)
Material: High-grade brass (Corrosion-resistant)
Flange Outside diam.: 178mm
Inside diam.: 64mm
BSP male thread: 1-1/2"/ 2" / 2-1/2" (Female thread on request)
P.C.D.:132mm
Flange Thickness: 14.5mm
Slots in Flange: 19mm diam x 4 holes

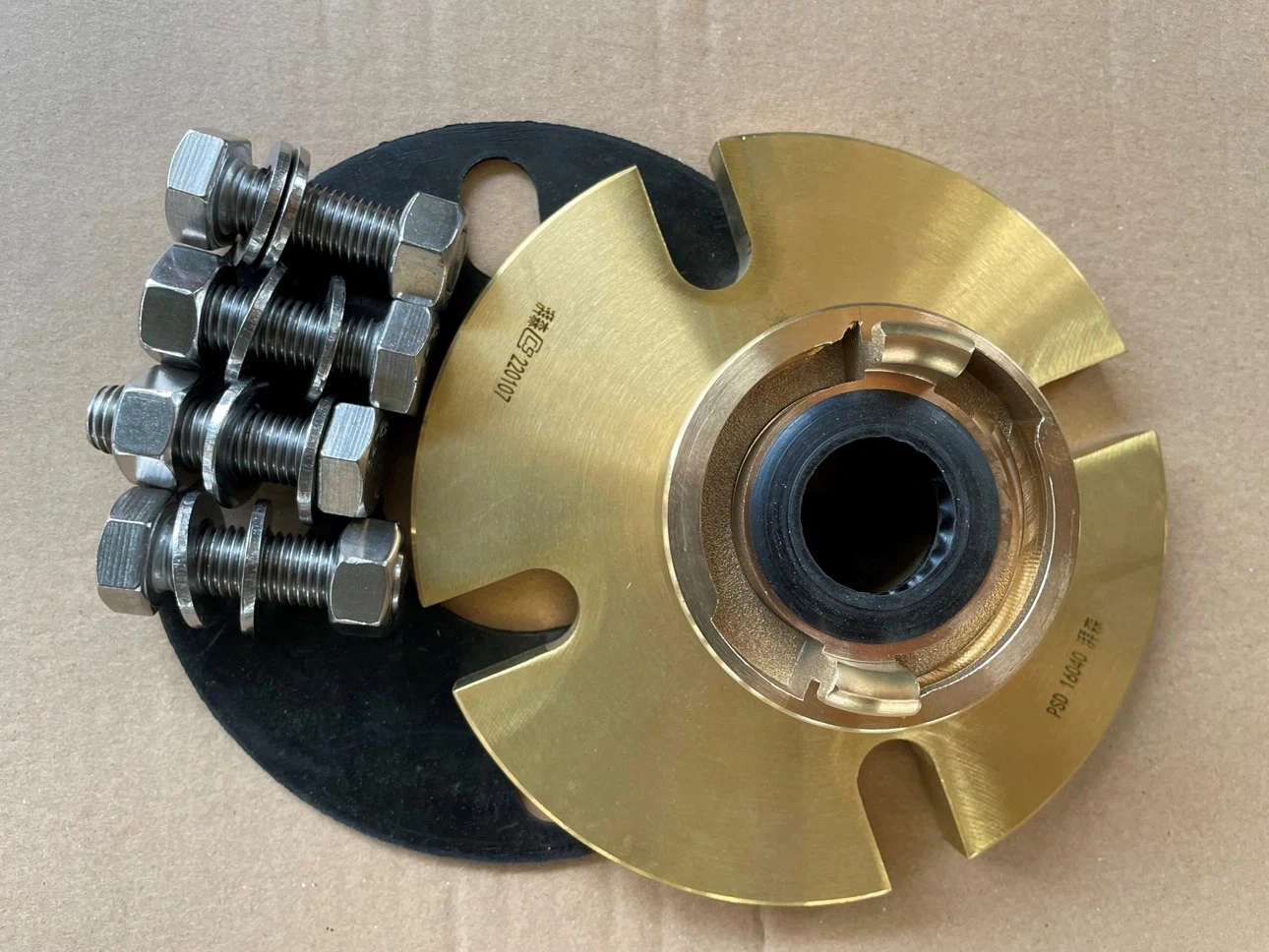

with stainless bolts (M16 x 50mm), nuts(M16), washers, rubber gaskets.
IMPA Code: 330841

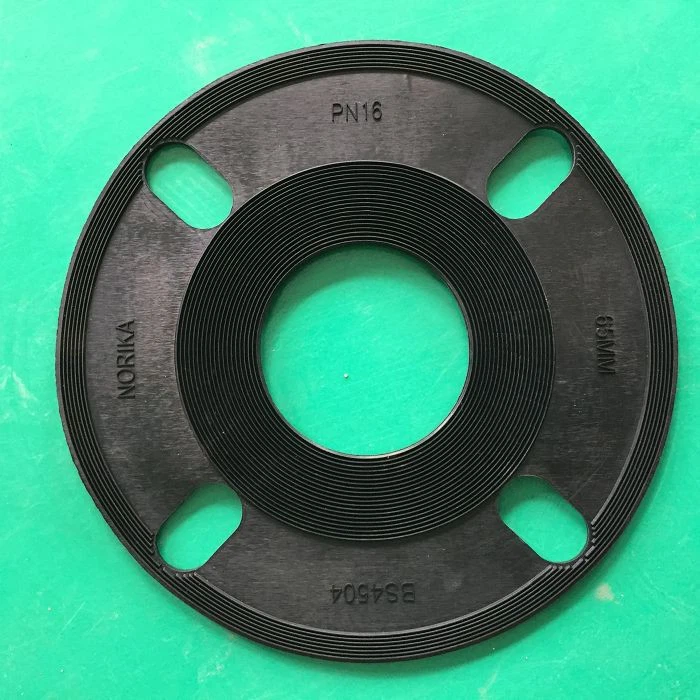

Rubber Gasket for International Shore Connection
Product feature
- High-Quality Brass Construction – Ensures durability and corrosion resistance in harsh marine environments.
- Universal Compatibility – Meets SOLAS and IMO regulation for seamless connection with shore and ship firefighting systems.
- Precision Machining – Flange dimensions and bolt holes are accurately manufactured for leak-proof performance.
- Easy Installation – Designed for quick and secure attachment in emergency situations.
- Compliance with SOLAS & IMO – SOLAS Certified for maritime safety regulations.
Product application
Ships & Vessels – Mandatory for all commercial ships under SOLAS regulations.
Ports & Offshore Facilities – Used to connect shore-based fire hydrants to ships.
Marine Firefighting Systems – Ensures interoperability between different vessels during fire emergencies.
Product details
Flange Design: Flat-faced with standardized bolt holes for secure fastening.
Rubber Gasket Included: Ensures a watertight seal.
Surface Finish: Smooth, polished to prevent damage to hoses.
Product qualification
CERTIFIED BY CHINA CLASSIFICATION SOCIETY (CCS)
Approval Standard:Regulations 10, Chapter I-2 of Amendments to 1974 SOLAS Convention, as amended
Chapter 2 of International Code for ire Safety Systems
Chapter 2, Part Three of China Classification Society Rules for Classification of Sea-Going Steel
Ships 2024 and its Amendments.
Deliver, shipping and service
Packaging: Each complete set inside a carton with all accessory.
Shipping: Worldwide via air, sea, or express courier (DHL, FedEx).
Lead Time: 30 days (depending on quantity).
Download
FAQ
Q: Is your BRASS International Shore Connection compliant with SOLAS?
A: Yes, it fully complies with SOLAS, we offer CCS approval if needed.
Q: What material is used in manufacturing?
A: High-grade brass for superior corrosion resistance.
Q: Can it be used for both ships and shore fire hydrants?
A: Yes, it is designed for universal compatibility.
Q: Are gaskets, bolts and nuts included?
A: Yes, a rubber/fire-resistant gasket is provided with SUS bolts and nuts are inclusive.
Q: What certifications can you provide?
A: We offer CCS Certificate for this item.
Q: What are the payment terms of EMF Marine?
A: Normally T/T 100% in advance for small orders. T/T 30% against order and balance before shipment for large orders. But we can discuss on special payment terms for some special orders.
Q: What are your general delivery terms?
A: EXW, FOB are the general terms we offer. CIF, FCA is less and less offered due to quick changes on freight in current unstable shipping market.
