Product Introduction

So called SCBA Cylinder Testing manometer is for testing the pressure of the SCBA cylinders without need to connect to SCBA sets. SCBA cylinder pressure testers are vital for ensuring the safety of first responders and industrial workers. Regular testing, proper maintenance, and adherence to standards are critical to preventing failures in high-stakes environments.

Product Parameter (specification)

Body Material: Chrome Plated Brass

Pressure Gauge Materials: Stainless Steel housing with rubber cover, Polycarbonate Lens

Product feature

G5/8 male connection, suitable for most of the SCBA cylinders on the market.

0 – 400 Bar test range

Product application

The cylinder pressure test gauge is specifically designed for checking the contents pressure of a cylinder when it is not connected to a SCBA set.

Product details

Body Material: Chrome Plated Brass
Pressure Gauge Materials: Stainless Steel housing with rubber cover, Polycarbonate Lens

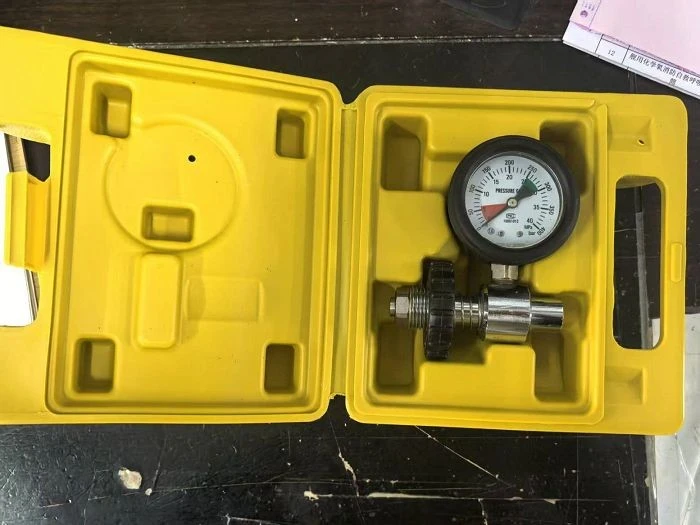

The cylinder pressure test gauge consists of a chrome plated brass valve body that incorporates a bleed valve, operated by rotating a finger screw.

The pressure gauge is a 400 bar gauge with a photoluminscent dial plate. The hand wheel and liner enables the test gauge to be screwed into both 200 and 300 bar cylinder valves with an G5/8 thread and allows the cylinder pressure to be checked quickly and easily with minimum loss of pressure.

Download

OPERATIONINSTRUCTION OF SCBA CYLINDER PRESSURE TESTER
TDS SCBA CYLINDER PRESSURE TESTER

FAQ

Q: What is a SCBA Cylinder Pressure Tester?

A: A specialized device to verify the internal pressure, structural integrity, and leak tightness of SCBA (Self-Contained Breathing Apparatus) cylinders (e.g., air or oxygen cylinders used in firefighting, industrial, or medical settings)

Q: What is the Key Functions of a SCBA Cylinder Pressure Tester / Manometer?

A: Test cylinders at their rated pressure (e.g., 300 bar/4500 psi) to ensure they meet safety standards.
Detect defects like leaks, corrosion, or structural damage.
Generate records for compliance with regulatory requirements (e.g., OSHA, NFPA, EN).

Q: What types of cylinders are compatible with the tester?

A: Carbon fiber composite cylinders (most common for modern SCBA)
Steel cylinders
Aluminum cylinders

Q: How often should SCBA cylinders be pressure tested?

A: Regulatory Standards:
Firefighting/Industrial:
Tested annually (e.g., NFPA 1989, OSHA 29 CFR 1910.134).
Some standards allow testing every 3 years for certain cylinder types (always follow local regulations).
After physical damage (e.g., impacts, drops), corrosion, or prolonged disuse, the pressure shall be tested immediately before use.

Q: What certifications can you provide?

A: We offer MED B and D approval by DNV or RINA as per Directive 2014/90/EU on marine equipment (MED).

Q: What are the payment terms of EMF Marine?

A: Normally T/T 100% in advance for small orders. T/T 30% against order and balance before shipment for large orders. But we can discuss on special payment terms for some special orders.

Q: What are your general delivery terms?

A: EXW, FOB are the general terms we offer. CIF, FCA is less and less offered due to quick changes on freight in current unstable shipping market.
