Product Introduction
Marine course recording paper is a consumable for ship course recorder, widely applicable to mainstream brands of marine recording equipment such as Tokimec (CR-1, 2, 3) and DCR-10A, 40A series course recorders, Sperry, Yokogawa (KR-100, KR-180) etc. All products comply with IMPA description, with standardized dimensions, compatible with global marine course recorders.
Recording paper For Course Recorder: 372601, IMPA 372602, IMPA 372603, IMPA 372604, IMPA 372605, IMPA 372606, IMPA 372607, IMPA 372608, IMPA 372609, IMPA 372610, IMPA 372611, IMPA 372612, IMPA 372613, IMPA 372614, IMPA 372615
At the same time, we also supply the following:
Recording paper For Echo Sounder: 372616, IMPA 372617, IMPA 372618, IMPA 372619, IMPA 372620, IMPA 372621, IMPA 372622, IMPA 372623, IMPA 372626, IMPA 372630, IMPA 372634, IMPA 372629
Recording paper For Weather Facsimile Receiver: 372638, IMPA 372639, IMPA 372640, IMPA 372641, IMPA 372642, IMPA 372643, IMPA 372644, IMPA 372645, IMPA 372711, IMPA 372712, IMPA 372713, IMPA 372714, IMPA 372648, IMPA 372657, IMPA 372658, IMPA 372659, IMPA 372632, IMPA 372633, IMPA 372651, IMPA 372652, IMPA 372653, IMPA 372654, IMPA 372655, IMPA 37265
Product Parameter (specification)
|
IMPA Code |
Recorder Model |
Chart Number |
Paper Size |
|

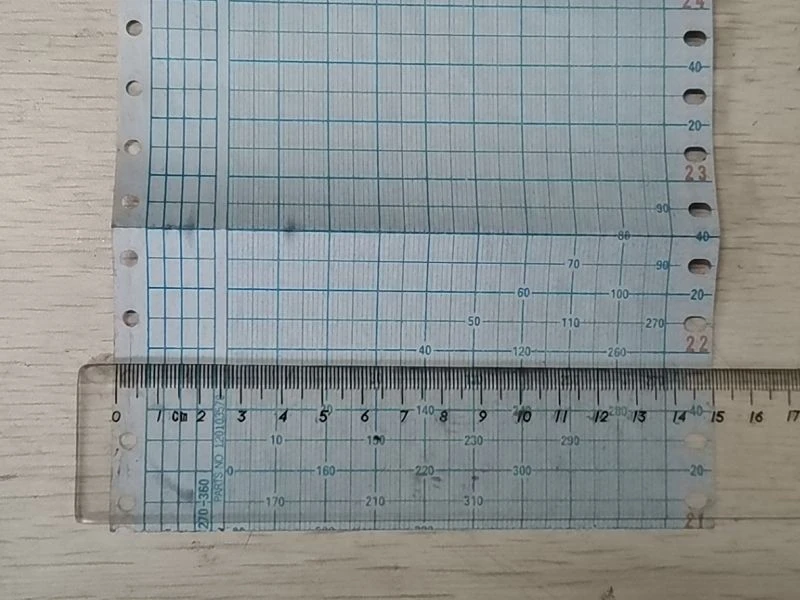

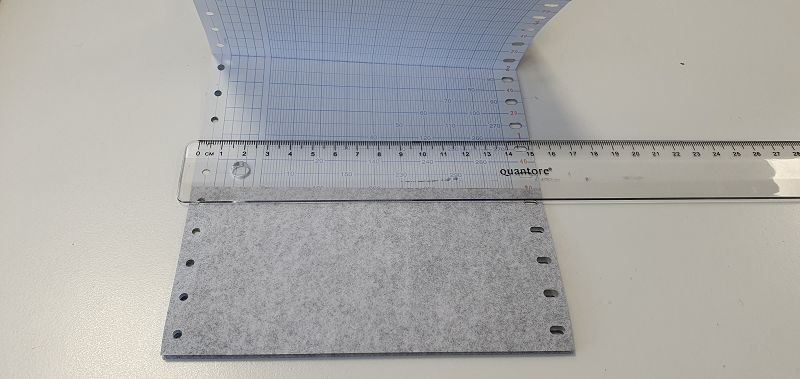

372601 |
Tokimec CR-1, 2, 3 |
Chart 120103573 |
150x75x35mm |
|
372602 |
Tokimec DCR-1,2,3 |
120103313 |
200x75x35mm |
|
372603 |
Tokimec and Sperry 65091 Mark-4 |
800839GND 109A120100773 |
152x47mmφ |
|
372604 |
Sperry Gyro Compass |
1324011006 |
152x50mmφ |
|

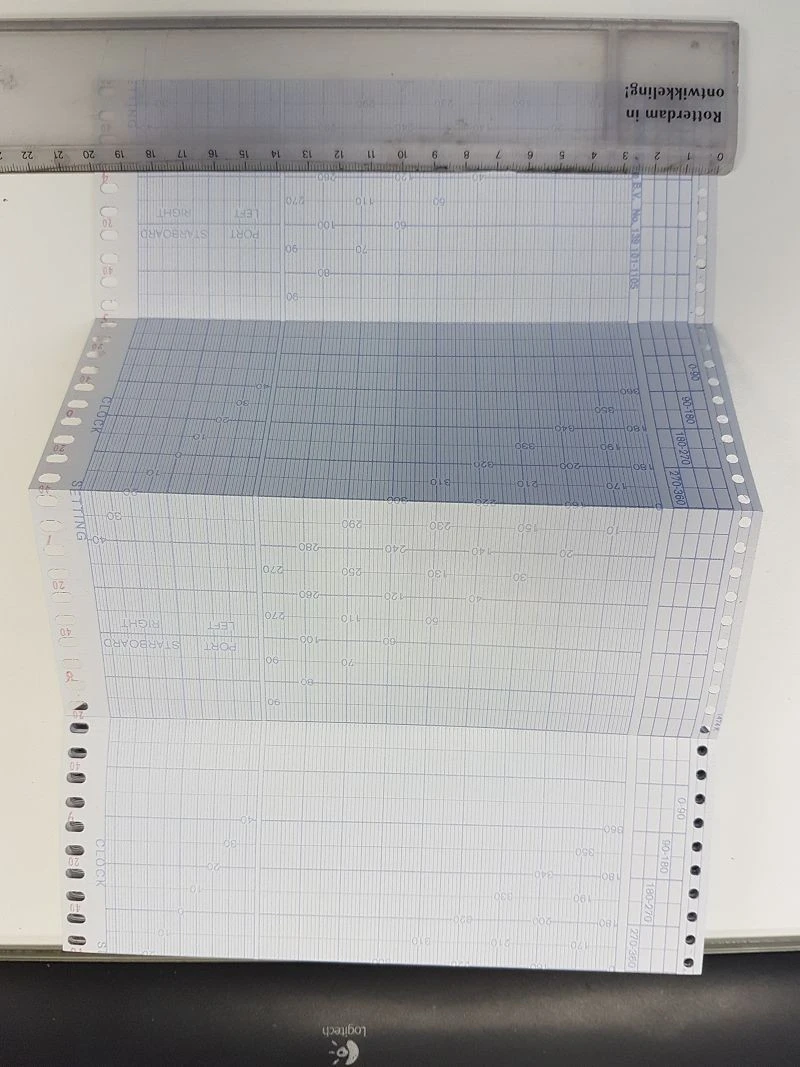

372605 |
Sperry Gyro Compass |
1391011105 |
200x75x35mm |
|
372606 |
KS 11 Anschutz |
8995 |
140mmx16mtr |
|
372607 |
104-06/12/20/027 |
104-06.01-3 |
140mmx16mtr |
|
372608 |
104-07/09/19/21/22/23 |
104-07.01-3 |
230mmx16mtr |
|
372609 |
104-026 |
104-026.02-4 |
230mmx16mtr |
|

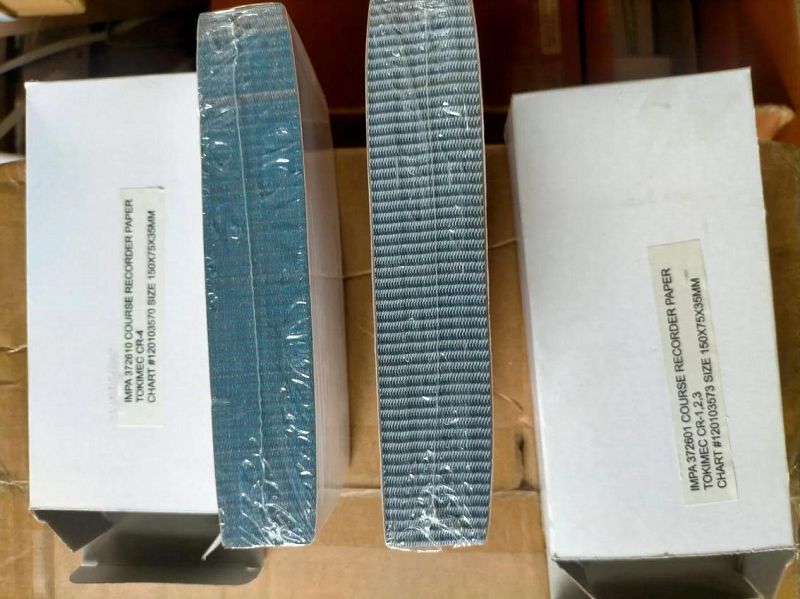

372610 |
Tokimec CR-4 |
120103570 |
150x75x35mm |
|
372611 |
Tokimec DCR-10A/40A |
120103310 |
150x75x35mm |
|
372612 |
Tokimec DCR-10A |
120103311 |
150x75x35mm |
|
372613 |
Yokogawa KR-100 |
V8105AA |
100mmx18mtr |
|

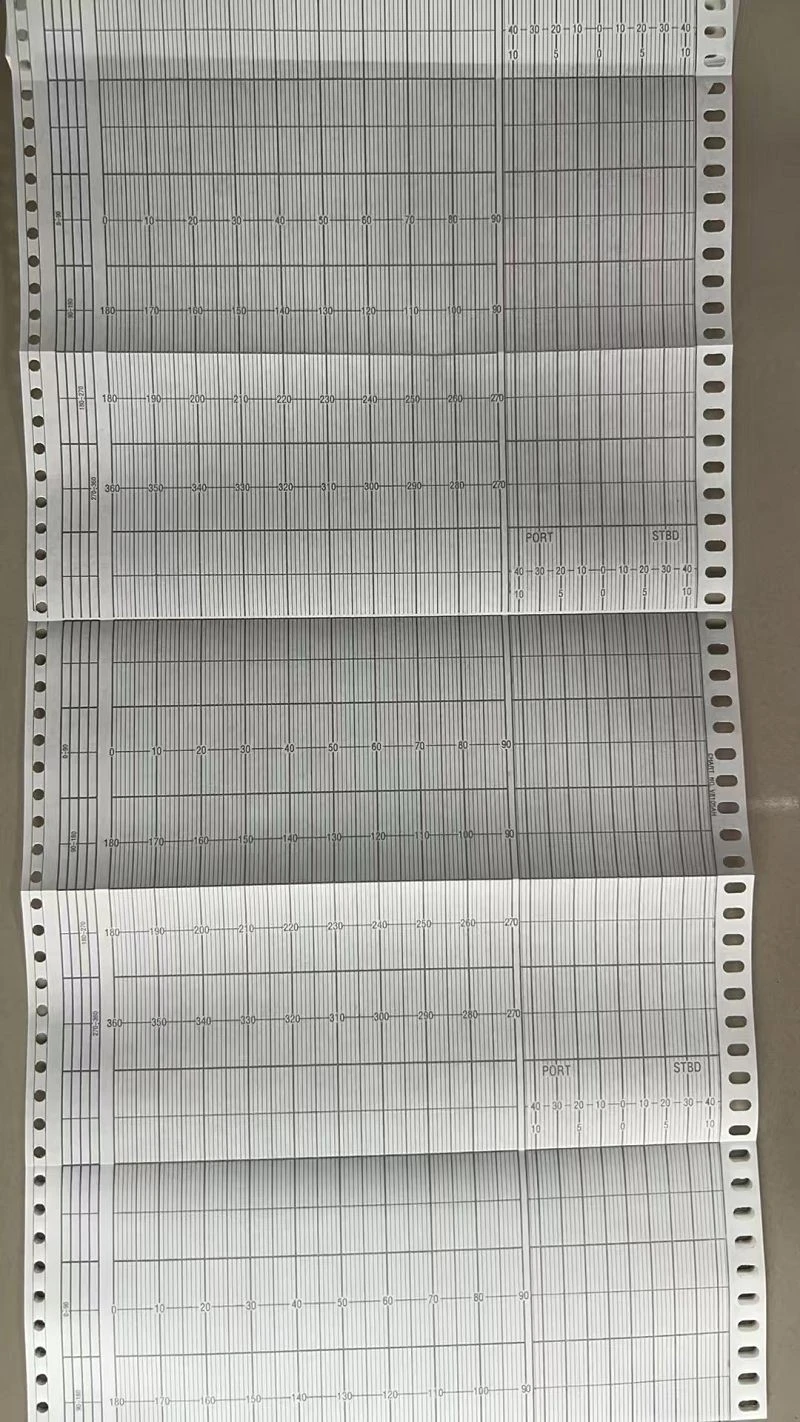

372614 |
Yokogawa KR-180 |
V8104AH/V8105AH |
180mmx18mtr |
|
372615 |
Yokogawa KR-207 |
UK 19-5 |
120mmx18mtr |
Product feature
All recording paper we supply strictly follow IMPA description, with unified IMPA code and standardized overall dimensions. They are perfectly compatible with global brands marine course recorders while much competitive on cost comparing with original paper supplied by the course recorder manufacturers.
Application
To be used on course recorder Tokimec (CR-1, 2, 3) and DCR-10A, 40A series course recorders, Sperry, Yokogawa (KR-100, KR-180) on board ships.
